Dedicated Water Quality Data Loggers
Data Logger Configured with Water Quality Sensor(s)

Eureka Manta Multiparameter Water Quality Recorder

Sonde Specifications

Housing Material: Clear PVC
Diameter: < 2” to 4” depending on sensor configuration
Length: 14” to 20” depending on sensor configuration
Weight: 2 to 4 kg depending on sensor & battery configuration
Operating Temperature: -5 to 50° C
Maximum Depth: 200 m
Communication Interface: USB, RS-232, SDI-12
Memory: 1.5 Mb EEPROM (Up to 120,000 measurements)
Power: PC Mode: Direct from PC USB port
SDI-12 Mode: 9 to 18 VDC
Battery Mode: 2” & 3” Sonde: 8 ‘AA’ alkaline batteries (external pack)
3.5” & 4” Sonde: 8 ‘C’alkaline batteries (internal pack)


Sensor Specifications

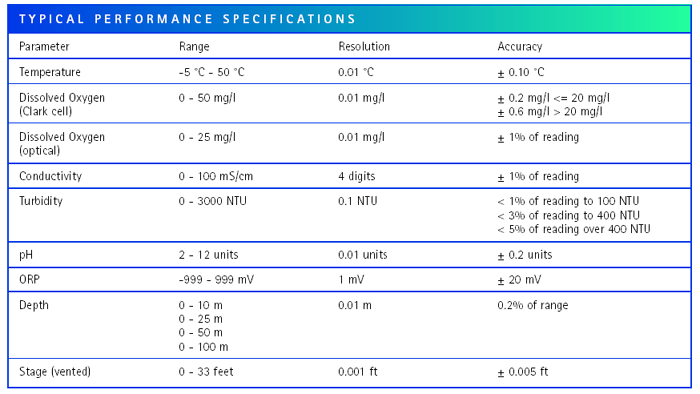

TYPICAL  PERFORMANCE  SPECIFICATION

Parameter

Range

Accuracy

Resolution

Comments

Temperature

-5°C – 50°C

±0.1°C

0.01°C



Optical

Dissolved Oxygen (mg/L)

Dissolved Oxygen

(% Sat)



0 – 20 mg/L



20-50 mg/L

0 – 200%



1% of reading or 0.02 mg/l, whichever is higher

5% of reading





0.01 mg/L





0.1



Automatic temperature & pressure compensated.

Salinity correction.

Conductivity



Salinity



TDS

0 – 100 mS/cm



0 – 70 PSS(PPT)



0 – 65 g/L

±0.5% reading + 1 count



± 1% of reading or .1 PSS,

whichever is greater

Calculated from Cond and Temp

4 digits

Automatic temperature compensated.

4-pole graphite type.



Turbidity

Optical 90° Nephelometric

Mechanical Wiper

0 – 3000 NTU

0-100     < 1% of reading

100-400 < 3% of reading

over 400 < 5% of reading

0.1

Self cleaning wipered turbidity

pH

0 – 14 units

±0.2 units

0.01 units

Automatic temperature compensated.

Ammonium

0-100 mg/L Nitrogen

± 10% of reading or 2 mg/L whichever is greater

0.1 mg/L - N

ION Selective Electrode with replaceable plasticized tips

Nitrate



0-100 mg/L Nitrogen

± 10% of reading or 2 mg/L whichever is greater

4 digits

ION Selective Electrode with replaceable plasticized tips

Chloride

.5-18,000 mg/L

± 10% of reading or 2 mg/L whichever is greater

4 digits

ION Selective Electrode with replaceable plasticized tips

Level

0-10 meter

.003 meter

.001

Vented transducer requires vented cable.

Depth

0 – 25 m

±0.1%  FS

0.01 m

Optical Characteristics Chlorophyll:



Light Source: Light Emitting Diode



Excitation Wavelength:



Chl 460nm



Emission Wavelength:



Chl 685nm



0 – 50 m

±0.1%  FS

0.01 m



0 – 100 m

±0.1%  FS

0.01 m

Chlorophyll

.03 - 50µg/L

+/- 3%

0.01 µg/L

Rhodamine

  0.04 to 1000 ppb

+/- 3%

0.01 ppb

Blue Green Algae

  100-200,000 cells/mL

  +/- 3%

20 cells/mL



Eureka Amphibian Field Display Unit

At about half the price of other sonde field displays, the Eureka Amphibian utilizes commercially available technology to provide a cost-effective solution for real-time monitoring applications. The waterproof, crushproof case meets military specifications and houses a Pocket PC and rechargeable battery pack. The on-board Eureka software provides all the features you need in the field to setup, display readings, and calibrate, the Eureka Manata Multiparameter Sonde.

With a few taps on the screen, you can set up rolling displays of data, capture a frame of data, start a timed log, and average your data readings. Plus the Pocket PC comes with Pocket Word and Excel, and can manage your contacts and address book. Data is automatically transferred to your desktop when you connect, and the free Eureka desktop software allows you to quickly graph and view your data.

The Amphibian comes complete with an Armor 3600 case with lifetime warranty, 9.6 volt rechargeable nickel metal hydride battery pack, battery charger, Sync cable and your choice of PDA: HP iPAQ 1710 - base model or HP iPAQ 2110 - deluxe model with Bluetooth.


Amphibian Specifications:

External Dimensions (inches): L 8.5 x W 5.2 x D 3.125
Weight: 2.6 pounds with batteries and PDA
Buoyancy: Positive (floats)
Battery Life: 20 hours of continuous use
MIL-STD-810F - Impact Resistant to Drop Test
MIL-STD-810F - Water Resistance Test
