Dedicated Water Quality Data Loggers
Pre-configured Data Logger with Sensors
|
Eureka
Manta Multiparameter Water Quality Recorder
Engineered
to last for years in the field, the Eureka Manta Multiparameter
Water Quality Sonde is ideal for fresh, salt or brackish water
monitoring applications. Housed in a tough 3.25" diameter
PVC housing, the Manta has 1.5 MB of EEPROM memory and can accommodate
water quality sensors for temperature,
conductivity, dissolved oxygen, pH, ORP, turbidity & depth/stage.
For spot checks, the Manta can be connected to the Amphibian Field
Display Unit, or for long term remote monitoring applications,
an optional 8 D cell battery pack can be installed.
More details at Eureka
Manta Multiparameter
|

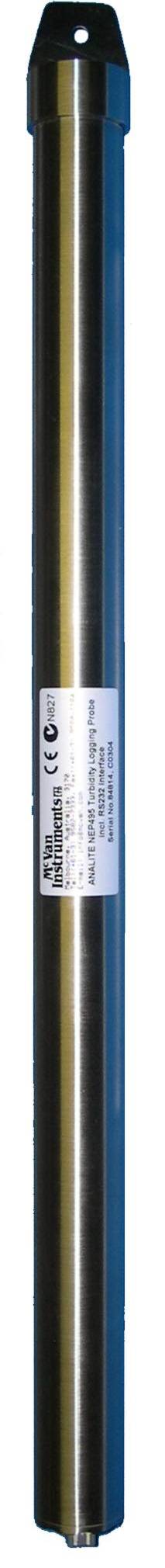

Analite 495
Turbidity & Temperature Recorder
The
495 Recorder is functionally equivalent to the Analite 395 turbidity
probe, but includes a temperature sensor and flexible data logger,
packaged in a self-contained stainless steel cylinder that is easy
to set up and download via the RS-232 PC interface. This microprocessor
based turbidity logger is designed for monitoring and logging applications
where turbidity levels of up to 1,000NTU may be encountered. To
maximize resolution, user selectable ranges of 40NTU, 100NTU, 400NTU
and 1000NTU are available. The 495 uses nephelometric 90 degree
optical retro-scatter technology to ISO-7027 specifications. A newly
implemented differential measurement technique with sample and hold
provides enhanced performance at low turbidity levels, and extremely
low zero drift. The sensor uses a unique modulation technique that
ensures almost total rejection of ambient light, and the integral
wiper assembly keeps the lens clear of sedimentation build-up and
bio-fouling. More
details at Analite
495 Turbidity & Temperature Recorder
|
6536
Conductivity & Temperature Recorder
![6536 Conductivity & Temperature Recorder](../Graphics/6536.jpg)
The 6536 Water
Conductivity Recorder is a complete measurement system suitable
for permanent field installation. Graphite electrodes, combined
with zero potential measurement technique, maximize stability
and reduce effects due to algae growth and other water pollutants.
Three built-in ranges allow the one instrument to cover a wide
range of conductivities. Autoranging means the instrument works
at its optimum resolution throughout the operating range. This
enables monitoring of saline conditions while still accurately
measuring flushes of fresh water. More
details at
6536 Water
Conductivity Recorder |
Dedicated
Water Level
Data Loggers
Pre-configured Data Logger with
Sensors
|
KPSI 550 WaterMonitor Depth & Temperature Recorder
The WaterMonitor
is a submersible hydrostatic level transducer with embedded datalogging
offering the highest level of functionality and accuracy available
today. The transducer meets the demanding requirements of the
USGS Office of Surface Water (OSW) accuracy specification for
stage monitoring.
The WaterMonitor combines a highly accurate (±0.05%) pressure
sensor with power conservative microcomputer datalogging circuitry.
The stainless steel housing of the 550 is small enough to hide
in most monitoring wells, More
details at
KPSI
550 Water Monitor |
8007
WDP Water Depth & Temperature Recorder
![8007 WDP Water Depth & Temperature Recorder](../Graphics/8007wdp1.jpg)
The
8007WDP consists of Unidata Micrologger with 120K RAM, digitally
corrected pressure transducer and thermistor temperature sensor
housed in a rugged stainless steel casing. With a diameter of
less than 2 inches it can be installed within most monitoring
wells and kept out of sight. Hardware features include, long life
field replaceable 'C' cell battery pack; temperature corrected
silicon & stainless steel strain gauge; and re-enforced Kevlar.... More
details at
8007 WDP Recorder
|
WL
16 Global
Water Level Recorder
The
WL16, Water Level Logger, is a datalogger and submersible pressure
transducer combination designed for remote monitoring and recording
of water level data. This inexpensive water level recorder can
record over 81,000 readings and has four recording options, fast
(10 samples per second), programmable interval (1 second to multiple
years), logarithmic, and exception. Multiple depth ranges are
available from 3' to 500' of water level change. A 25' vented
cable is standard on all water level loggers, and optional cable
lengths are available from the factory up to 500'. More
details at WL
16 Recorder |
Solinst
Levelogger Gold Level & Temperature Recorder
The New Levelogger
Gold represents the next generation of discrete water level &
temperature dataloggers. With no vented cable, the sealed design
combines a datalogger, built-in lithium battery, pressure transducer
and temperature sensor, in a small, minimal maintenance, 7/8"
x 6" (22 mm x 154 mm) stainless steel housing.
![](../Graphics/solinst_levelogger_goldsm.jpg)
It can be
suspended on a simple wire line, or connected to the surface with
a direct read cable (for downloading of data and/or reprogramming
without removal from the water). More details at Solinst
Levelogger Gold
|
6541-11/C
Precision Water Level Recorder
Float-operated
instruments can be the most accurate way to monitor the level
of a water surface. The 6541-11/C consists of a optical shaft
encoder packaged with a 120K RAM Unidata Micrologger. This recorder
can achieve an operating accuracy and resolution of 0.2mm over
a full scale range of 0 to 65.5 meters. The 500 mm circumference
pulley is normally connected to the... More
details at
6541-11C
Recorder
|
AquaRod
Freeze Tolerant Water Level & Temperature Recorder
The
AquaRod is a high precision, low maintenance instrument based
on capacitance-measuring technology. It is comprised of a pod,
which contains the electronics for data acquisition, and a rod,
which is the capacitance gauge. More
details at AquaRod
Recorder |
6526
Starflow Ultrasonic Doppler Flow Recorder
The Starflow
is a compact, easy to use system for measuring the velocity and
depth of water in rivers and streams, open drainage channels and
large pipes.
![6526 Starflow Ultrasonic Doppler Flow Recorder](../Graphics/starflow.jpg)
It is suitable
for use in a wide range of water qualities ranging from sewerage
and waste water to clean streams, potable water, and even sea
water. The instrument measures forward and reverse flow conditions
and may be programmed to compute Flow Rate and Total Flow in pipes
and open...
More
details at
6526
Starflow Ultrasonic Recorder |
Minilog
TR Temperature & Depth Recorder
The 8007WDP
consists of Unidata Micrologger with 120K RAM, digitally corrected
pressure transducer and thermistor temperature sensor housed in
a rugged stainless steel casing. With a diameter of less than
2 inches it can be installed within most monitoring wells and
kept out of sight.
![Minilog](../Graphics/minilogsmall.jpg)
Hardware features
include, long life field replaceable 'C' ..
More
details at
Minilog
TR Recorder |
